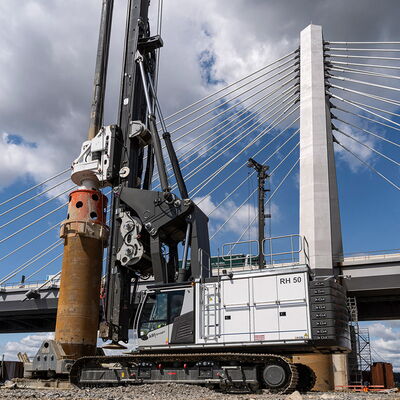

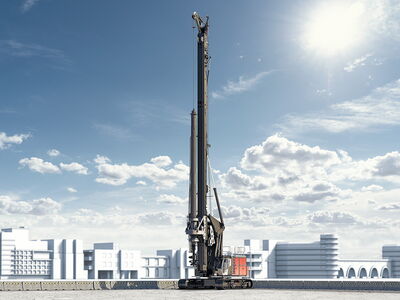

DELMAG RH 50

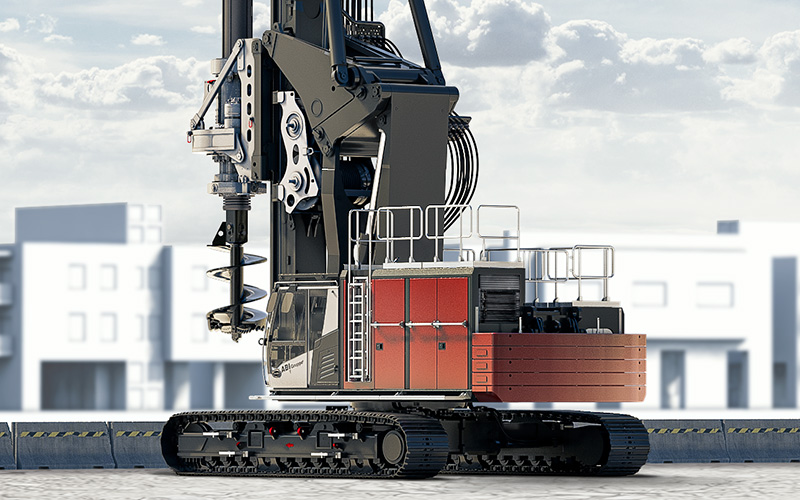

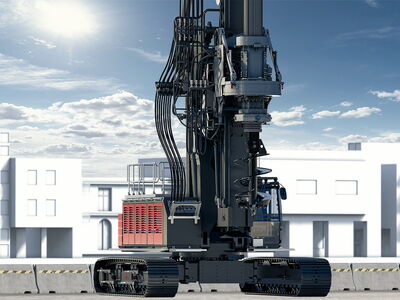

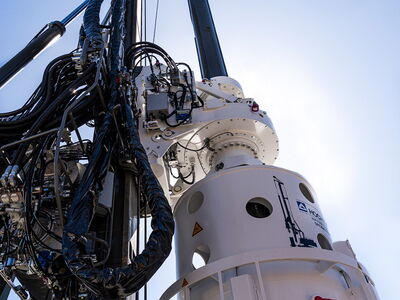

RH 50 - a large machine for large tasks. The powerful machine is built on ABI's own T110 carrier and is used for drilling large-diameter holes and for drilling to great depths. The powerful BT 500 rotary head, which is offered as standard, impresses with a torque of over 500 kNm and a maintenance-friendly design with from outside exchangeable drive keys. The transport weight of the RH 50 can be divided between several low-loaders by removing the complete leader mast unit.
| Power kW | 470 |
| Techniques |
Mixing |
| PDF Downloads |
Leistungsstark – Robust - Effizient
All advantages at a glance
- High stability and torsional stiffness
- High crowd forces
- Drilling depths of up to 60m
- Hydraulic extendable undercarriage
- Detachable crawler units
- Leader mast extension available
| Technical Data | Value | Unit |
|---|---|---|
| Total height: | 27800 | mm |
| Inclination: | 5° / 5° 5° / 14° |
left / right forward / back |
| Torque Rotary Head at 350 bar: | 507 | kNm |
Kellybohrantrieb
BT 500
Drilling
Mixing
